Cov khoom

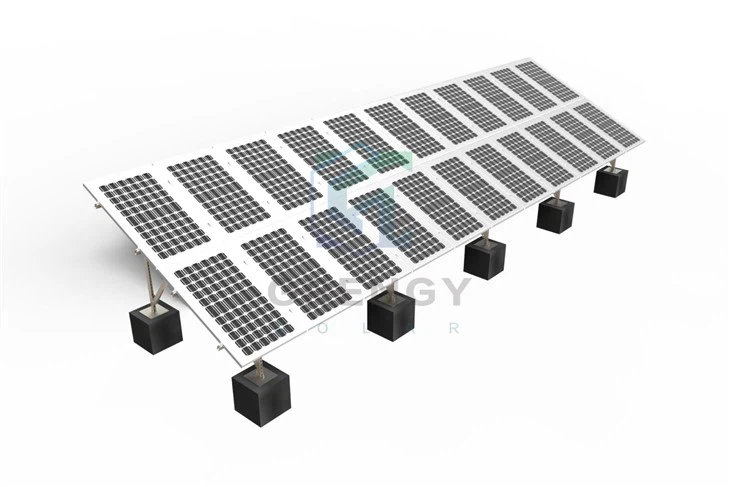

Qhob Mount

Lub npe: pob zeb mount
Max cua ceev: 50m/s-60m/s
Max daus load: 1.4-1.6kn
Module Orientation: Portrait (nyiam dua / raug nqi zoo) thiab toj roob hauv pes
Module Inclination: 2V / 4H: 0 - 25 degrees ; 3V / 5H: 0 - 15 degreesPurlins: ZAM S355Rafters: ZAM S355
Txhawb Ncej: ZAM S355
Fixations: Stainless hlau (SUS304) * (SUS316) & HDG muaj
Warranty: 25 xyoo

Xa kev nug

Kev xa khoom sai
Quality Assurance
24/7 Kev Pabcuam Cov Neeg Siv Khoom

Khoom Taw qhia

Product Description:

Kev Txhim Kho Cement Blocks Hnub Ci Vaj Huam Sib Luag Roof Mounting Systems Hlau Sheet Stainless Hlau Rau PV Roof Structures

Lub hnub ci mounting yog ib qho kev daws teeb meem nrog rau cov qauv steel thiab aluminium rails .nws yog tsim rau ob qho tib si me me thiab loj hnub ci cov nroj tsuag .nrog rau kev sib txuas yooj yim, nws tuaj yeem ntsia tau rau hauv lub hauv paus pob zeb, thiab tseem hauv av hauv av, txawm tias txoj kab nqes tuaj yeem. kuj ua haujlwm tau.

Cov ntsiab lus ceev:

► Av Clearance: Ntau dua lossis sib npaug rau 0.15m
► Siv tau Module: Framed, frameless
► Module Orientation: Portrait, toj roob hauv pes
► Array Layout: Raws li qhov xwm txheej tiag tiag

Lub ntsiab nta ntawm lub ru tsev tiaj tus ZAM steel hnub ci mounting system

--Kev yooj yim ntawm kev txhim kho Txaus siab rau cov txheej txheem tsim kho yooj yim nrog peb cov qauv yooj yim rau nruab, ua kom tiav qhov project sai thiab ua tau zoo yam tsis muaj cov cuab yeej tshwj xeeb

-- Ua kom Kawg, Crafted los ntawm kev cai tsim aluminium extrusion, thiab fastened nrog stainless hlau fixations, peb cov qauv yog engineered los tiv thaiv lub sij hawm.

--Cov khoom zoo hauv cov hlau galvanized thiab SUS 304.

--Screws thiab txiv ntseej mus nrog txhua yam uas xav tau.
-- Cov fasteners thiab cov ntsia hlau ntsia hlau tau teeb tsa kom txuag tau qhov kev yuav khoom ntxiv.

--Kev sib tw siab ntawm cov khoom siv nqi

Xav paub ntau ntxiv hu rau vivi ntawmvivian@grengysolar.com.

Khoom Parameter:

Mount Hom	Hnub ci mounting bracket / pv hnub ci vaj huam sib luag pobzeb ru tsev mount / bracket / racking system
Daim ntawv thov	Framed hnub ci vaj huam sib luag rau txhua qhov loj me
Vaj huam sib luag kev taw qhia	Vertical lossis toj roob hauv pes
Cov ntaub ntawv tsim qauv	Aluminium, ZAM, stainless hlau
Ciaj sia cua ceev	Mus txog 130 mph (60m / s)
Tsim los daus siab	Mus txog 30psf (1.4KN / m2)
Kev xav	0 degree (lub kaum sab xis tib yam li lub ru tsev)
Kev kho mob	Anodized, Galvanized
Warranty	Tsim Lub Neej rau 25 xyoo, kev ruaj ntseg zoo rau 10 xyoo
