Cov txiaj ntsig ntawm Solar Modules
GRENGY hnub ci modules, feem ntau hu ua hnub ci vaj huam sib luag, yog lub xeev - ntawm - -art photovoltaic (PV) systems tsim los ntes lub hnub ci thiab hloov mus rau tam sim no (DC) hluav taws xob. Tsim los nrog siab - purity silicon hlwb, tempered iav, thiab framing robust, lawv yog tsim los tiv thaiv lub sij hawm thiab cov ntsiab lus. Txawm hais tias koj tab tom nrhiav kom muaj zog rau koj lub tsev nyob, kev lag luam kev lag luam, lossis kev tawm ntawm - daim phiaj daim ntawv thov, peb cov monocrystalline thiab polycrystalline modules muaj cov kev daws teeb meem raws li koj cov kev xav tau ntawm lub zog thiab nyiaj txiag.
High -Kev ua tau zoo
Siv kev txiav-ntug monocrystalline PERC (Passivated Emitter thiab Rear Cell) thev naus laus zis, peb cov vaj huam sib luag ua tiav qee qhov kev hloov pauv siab tshaj plaws ntawm kev ua lag luam. Qhov no txhais tau tias koj tsim hluav taws xob ntau dua los ntawm tib lub hnub ci, ua kom koj lub zog ntau lawm thiab txuag qhov chaw ru tsev muaj txiaj ntsig.
Exceptional Durability thiab Longevity
Anti-PID Technology: Tiv thaiv kom tsis txhob muaj hluav taws xob poob qis, ua kom muaj kev ruaj ntseg txawm tias nyob rau hauv qhov hnyav.
Ntsev Mist & Ammonia Resistance: Certified rau durability nyob rau hauv ntug hiav txwv dej thiab ua liaj ua teb ib puag ncig.
Huab cua siab thiab daus Load Ratings: Tiv thaiv huab cua hnyav, nrog rau cov daus hnyav hnyav thiab cua daj cua dub.
Txhim khu kev ua tau zoo nyob rau hauv qis- Teeb pom kev zoo
Grengy hnub ci vaj huam sib luag yog tsim los pib tsim hluav taws xob ua ntej thaum sawv ntxov thiab txuas ntxiv ua tom qab yav tsaus ntuj, txawm nyob rau hnub huab lossis huab cua. Qhov kev ua tau zoo siab qis - lub teeb ua haujlwm kom ntseeg tau tias koj ntes txhua kilowatt - teev ntawm lub zog.
25-Xyoo Linear Power Output Warranty
Peb muaj kev ntseeg siab loj hauv peb cov khoom. Peb txoj kev lag luam-ua thawj coj kev lees paub tau lees tias koj cov vaj huam sib luag tseem yuav xa tawm tsawg kawg 87% ntawm lawv cov khoom siv hluav taws xob qub tom qab 25 xyoo ua haujlwm. Qhov kev cog lus no ua rau koj muaj kev thaj yeeb nyab xeeb thiab kev kwv yees rov qab los ntawm koj cov peev txheej.
Aesthetic thiab txhim khu kev qha tsim
Tag nrho -dub tsim thiab streamlined framing muab ib tug sleek, niaj hnub saib uas complements ib lub ru tsev. Muaj zog bypass diodes txo lub zog poob los ntawm ib nrab shading, kom ntseeg tau tias muaj zog ntau lawm.
-
![Monocrystalline PERC 550W Hnub Ci Vaj Huam Sib Luag]()
Monocrystalline PERC 550W Hnub Ci Vaj Huam Sib Luag
Yam khoom: Monocrystalline PERC 550W Hnub Ci Vaj Huam Sib Luag
Hom Cell: Monocrystalline N- hom
Module qhov ntev: 2279x1134x35mm
Module kom muaj nuj nqis ib 40'container: 620pcs...Ntxiv rau Kev Nug -
![560W-590W N-Type Hnub Ci Modules]()
560W-590W N-Type Hnub Ci Modules
Yam khoom: 560W -590W N-Type Hnub Ci Modules
Hom Cell: Monocrystalline N- hom
Module qhov ntev: 2278x1134x35mm
Module kom muaj nuj nqis ib 40'container: 620pcs (HQ)
Daim ntawv pov...Ntxiv rau Kev Nug -
![Monocrystalline Bifacia Hnub Ci Vaj Huam Sib Luag 625W ~ 645W]()

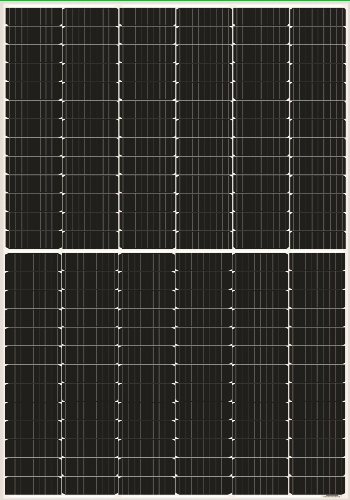

Monocrystalline Bifacia Hnub Ci Vaj Huam Sib Luag 625W ~ 645W
Cov khoom: Monocrystalline Bifacia Hnub Ci Vaj Huam Sib Luag 625W ~ 645W
Hom Cell: Monocrystalline N- hom
Module qhov ntev: 2172x1303x30mm
Module kom muaj nuj nqis ib 40'container: 648pcs...Ntxiv rau Kev Nug -
![Monocrystalline Hnub Ci Modules 530W ~ 555W]()

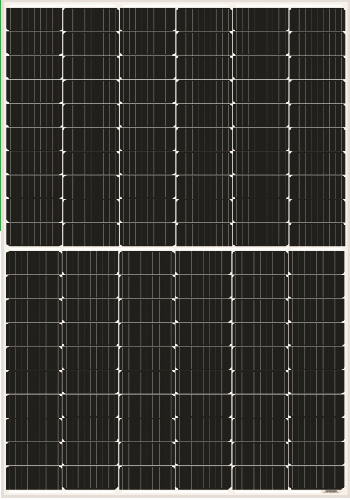

Monocrystalline Hnub Ci Modules 530W ~ 555W
Cov khoom: Monocrystalline Hnub Ci Modules 530W ~ 555W
Hom Cell: Monocrystalline N- hom
Module qhov ntev: 2279x1134x35mm
Module kom muaj nuj nqis ib 40'container: 620pcs (HQ)
Daim...Ntxiv rau Kev Nug -
![Monocrystalline Hnub Ci Modules 420W ~ 440W]()

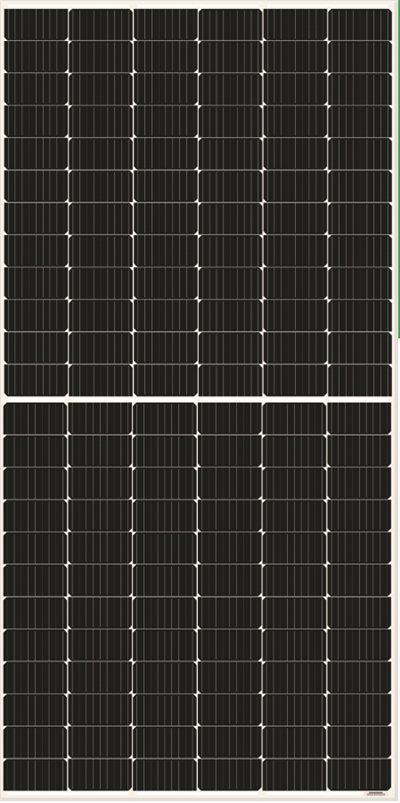

Monocrystalline Hnub Ci Modules 420W ~ 440W
Cov khoom: Monocrystalline Hnub Ci Modules 420W ~ 440W
Hom Cell: Monocrystalline N- hom
Module qhov ntev: 1722x1134x30mm
Module kom muaj nuj nqis ib 40'container: 936pcs (HQ)
Daim...Ntxiv rau Kev Nug -
![Monocrystalline Hnub Ci Modules 690W ~ 730W]()
Monocrystalline Hnub Ci Modules 690W ~ 730W
Cov khoom: Monocrystalline Hnub Ci Modules 690W ~ 730W
Hom Cell: Monocrystalline N- hom
Module qhov ntev: 2384x1303x30mm
Module kom muaj nuj nqis ib 40'container: 648pcs (HQ)
Daim...Ntxiv rau Kev Nug
Technical Parameters (Piv txwv qauv: 730W)
| Parameter | Specification |
|---|---|
| Lub zog siab tshaj plaws (Pmax) | 730 W |
| Hom Cell |
Monocrystalline N- hom |
| Kev npaj ntawm tes |
132(6x22) |
|
Maximum System Voltage |
1500V DC fais fab mov |
|
Ua haujlwm kub |
-40℃rau +85 degree |
| Lub zog siab tshaj plaws (Vmp) |
43.4V |
| Maximum zog tam sim no (Imp) |
16.83A |
| Qhib Circuit Court voltage (Voc) |
51.4V |
| Luv Circuit Court tam sim no (Isc) |
17.67V |
|
Maximum Series Fuse Rating |
35A |
| Qhov Loj (L x W x H) |
2384x1303x30mm |
| Qhov hnyav | 38.5kg 3 |
|
Nominal Operating Cell Temperature (NOCT) |
43℃± 2 degree |
F&Q
Q: Lub hnub ci modules kav ntev npaum li cas?
A: Hnub ci modules yog qhov ruaj khov heev. Lawv lub cev lub neej feem ntau yog 30+ xyoo. Kev lag luam- qauv kev ua haujlwm tau lees paub tau lees tias lawv tseem yuav tsim cov feem pua siab (xws li, 87-92%) ntawm lawv cov khoom qub tom qab 25 xyoo.
Q: Lawv puas ua haujlwm rau hnub huab cua lossis lub caij ntuj no?
A: Yog. Thaum lub zog tsim hluav taws xob siab tshaj plaws nyob rau hauv tshav ntuj ncaj qha, peb cov qauv tsim tshwj xeeb los hloov cov hnub ci ntsa iab ntawm hnub huab cua rau hauv hluav taws xob. Lawv tseem yuav tsim hluav taws xob nyob rau lub caij ntuj no, txawm tias cov hnub luv luv thiab cov daus npog tuaj yeem txo cov zis ib ntus.
Q: Qhov txawv ntawm Mono thiab Polycrystalline modules yog dab tsi?
A: Monocrystalline (Mono) vaj huam sib luag yog tsim los ntawm ib zaug - siv lead ua silicon, feem ntau siv tau zoo dua, thiab muaj qhov zoo li dub. Polycrystalline (Poly) panels yog tsim los ntawm fragmented silicon, yog me ntsis npaum li cas, thiab muaj ib tug xiav, speckled saib. Mono panels feem ntau muab kev ua haujlwm zoo dua thiab zoo nkauj tab sis tuaj yeem los ntawm tus nqi siab dua me ntsis.
Q: Yuav tsum muaj kev saib xyuas ntau npaum li cas?
A: Hnub ci modules yuav tsum tau saib xyuas me ntsis. Qee zaus ntxuav nrog dej kom tshem tawm cov av, plua plav, lossis noog drobbing yog pom zoo kom lawv ua haujlwm ntawm qhov ua tau zoo. Nyob rau hauv cov huab cua snowy, panels feem ntau los daus ntawm lawv tus kheej vim lawv slick nto thiab qaij.
Raws li ib qho ntawm cov kev tshaj lij hnub ci modules lwm tus neeg nyob hauv Suav teb, peb tau tshwj xeeb los ntawm cov khoom zoo thiab cov kev pabcuam. Thov so assured mus yuav customized solar modules ntawm kev sis tw nqi los ntawm peb lub hoobkas.
